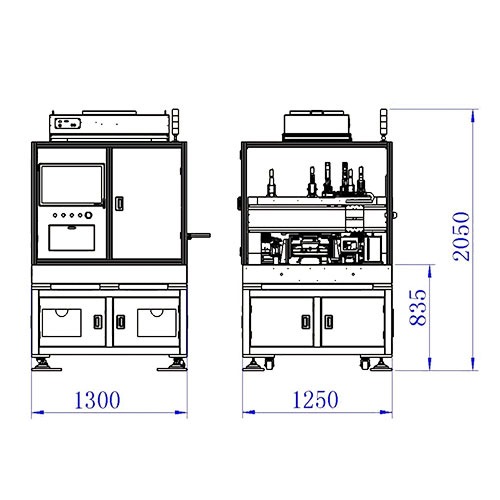

Automatic mobile phone lens assembly high-speed line (assembly of 6-7p, 100 million pixel lens)
model：JKA031
Data download
Return to list
Product features
The lens and the light shielding sheet are assembled into the lens barrel through a high-speed and high-precision flexible assembly head. The high-speed and high-precision visual positioning and correction system is adopted to realize the precision assembly of the lens and the light shielding sheet. The last station equipment is used for dispensing and packaging.
The whole assembly line consists of lens assembly machine and dispensing machine. The number of lens assembly machines can be increased or decreased according to the requirements of lens assembly process.
Specification parameters
Equipment capacity UPH > 1200 Pcs/H
Assembly accuracy 5μm
Repetitive positioning accuracy of linear motor ±1μm
Flatness of assembly platform 5μm
Perpendicularity of assembled shaft 5μm
Rotation accuracy of assembled shaft 5μm
Control accuracy of preloading height of assembly shaft 1μm
Assembly shaft pressure control 0.05Kgf ~ 5Kgf (Δ<±0.05Kgf)
Air and vacuum sources Air source: 0.3 ~ 0.7MPa, vacuum source: 0 ~ - 100KPA
Power and vacuum sources AC220V 50/60HZ, 2.5KW
Equipment advantages 1. Adopt high-speed and high-precision image vision system, with high assembly accuracy and efficiency; 2. It has a complete precision detection system to ensure the delivery quality of equipment.
Application scope
It is suitable for high-speed and precise assembly and sealing of lenses and light shields of various types of mobile phone cameras
